New Web-based Communication Controller for Cost Sensitive Applications - The ADAM-6500

The ADAM-6500 is a fully functional Ethernet-enabled controller for industrial automation and control. It provides an ideal environment to develop applications converting RS-232/485 devices and/or equipment data to the Ethernet/ Intranet world with a minimum amount of effort. Two versions are available: one with A-Studio Lite Runtime and the other with built-in Windows CE.NET OS. The version with Windows operating system lets users run new programs produced by Microsoft embedded VB or VC++. The Windows environment also includes a web server to allow designers to develop web-enabled applications.

The new ADAM-6500 product from Advantech provides reliable web connectivity while meeting the demands of low-end, cost sensitive applications. It's an ideal fit for web-enabled applications where graphic display capabilities and larger tag counts are not necessary.

ADAM-6500 Main Features:
* = with optional A-Studio Lite Runtime Software version only.
WinCE. NET real-time O/S or A-Studio Runtime
10/100 Base-T Ethernet port
5 Serial COMM ports (3 x RS-232 and 2 x RS-485)
206MHz StrongArm CPU
32MB DRAM
Compact Flash slot
10-32VDC input power
DIN-rail mounting is included
Modbus/TCP. Modbus/RTU protocol driver toolkit
Embedded HTTP, FTP, Telnet servers
TCP/IP support via integrated RJ45 Ethernet port or optional external
modem
Integrated web server works with any PC via Internet Explorer
Text based web pages with one-touch web page design*
Integrated OPC server easily connects to remote OPC client
applications*
Fault and event notification via e-mail or pager*
On-line alarm viewing allows quick status checking via web browser*
Alarm and trend history support data and event logging to file for off-line viewing and analysis*
Math and schedule worksheets support simple logic functionality*
Security system allows complete control over access to web pages,
data, etc.*
Shares the same development software tools as other WebLink/WebOIT products (Astudio Development Version)*
Industry standard protocols included for easy interface to popular PLCs and I/O*

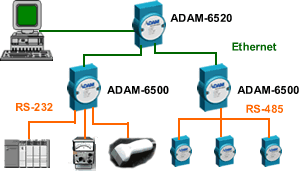

Sample System Architecture:
The ADAM-6500 is a compact and powerful field controller which provides an ideal embedded platform for users to develop their own applications.
