Specifications for New PCM-3291

1. Major Specifications

• 1.1 Receiving channel :12-channel parallel
• 1.2 Receiving frequency :1575.42 MHz ?1 MHz (C/A code)
• 1.3 Receiving sensitivity :Under -130 dBm
• 1.4 Accuracy a) Position :2D RMS (PDOP=3 or less) , Spherical error probability 95% :100 m (with SA) :50 m (without SA) b) Velocity :Up to 1m/sec (PDOP=3 or less)with SA Time Mark Pulse :1 Sec ?500 ns (TYP.)
• 1.5 Minimum units of measurement a)Position :1/1,0000min b) Velocity :0.1 km/h c) Bearing :0.1 degree
• 1.6 Tracking performance a) Velocity :Up to 950 m/s b) Acceleration :Up to 4 G
• 1.7 Position update rate :1 sec
• 1.8 Time to first fix a) Warm start :Within 60 sec (TYP. at normal temperature, collected all almanac data and restart after fix) b) Cold start :3 minutes (TYP. at normal temperature)
• 1.9 Positioning mode : 2-D Positioning (3 Satellites: HDOP<10) :3-D Positioning (4 Satellites: PDOP<7)
• 1.10 Initial position data :Not necessary
• 1.11 Almanac and Time data : Not necessary
• 1.12 Supply power a) Voltage :+ 5 V ?5 %, ripples within 50 mV p-p b) Current :300 mA (NO GYRO)
• 1.13 Operating temperature range:-30° C to + 75° C
• 1.14 Storage temperature range :- 40° C to + 85° C
• 1.15 Weight : less 110 g

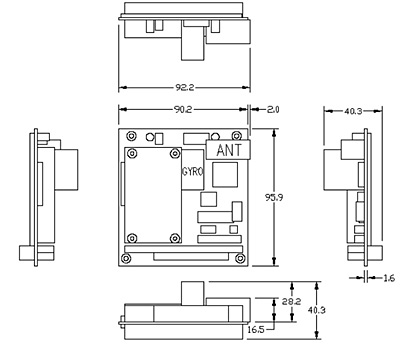

• 1.16 Dimensions : 95.9 ?90.2 ?40.3 mm (GYRO) 95.9 ?90.2 ?28.6 mm (No GYRO)
• 1.17 Data communication : Asynchronous bi-directional data communication with TTL level
• 1.18 Input data DGPS : RTCM SC-104 Message type 1 and 9 GPS set up : Original
• 1.19 Output data format : NMEA-0183 or Binary
• 1.20 Time mark pulse output : 1PPS/10 KHz
• Default format type is NMEA-0183 format.
  • 9600 bps nonparty 1 start-bit 1 stop bit.
  • 4800 bps nonparty 1 start-bit 1 stop bit.
• Default Output Message.
  • Message Type
    • GGA
    • GSA
    • GSV
    • RMC
    • ZCH
• To change to NMEA0183 format should be use input command. Refer to Binary format and NMEA0183 format.

Ordering Info

PCM-3291-0000 PC/104 GPS Module
