Bring Industrial Grade Fanless PCs to the Factory Floor

The UNO-2000 series has opened the eyes of conventional computing platform users. Its compact size, fanless design, versatile communication interfaces, Ethernet-ready and ADAM I/O driver-ready features prove the UNO-2000 as the best field embedded IPC for factory floors. In 2004, Advantech continues to enhance the UNO-2000 series with a Pentium III CPU, fieldbus interfaces, up to 2 serial ports and the latest Windows CE .NET OS, which all demonstrate UNO-2000 as the most trustworthy PC-based platform in the eAutomation world. Target markets of UNO-2000 include communication gateways, access controllers, embedded
I/O servers and vehicle data servers.

UNO-2160
Celeron-400 Universal Network Controller with 2x RS-232,2x RS-232/422/485, 2x LAN and PC/104 Extension
Onboard (Intel Celeron-400MHz CPU), 256/512MB RAM
Two RS-232, two RS-232/422/485 ports with automatic RS-485 data flow control
Dual IO/100 Base-T RJ-45 ports
Two USB ports and one Type I/II PC Card
Dual PC/104 extension
Windows XP embedded and Windows CE.NET ready Solution
Supports one 2.5"HDD
512KB Battery-Backup RAM

UNO-2059
GX1-300 Universal Network Controller with LAN, 2 x RS-232, 2 x isolated RS-422/485
Onboard GX1-300 MHz, 64/128 MB SDRAM
Two RS-232/485 and two RS-232/422/485 ports with automatic
RS-485 data flow control
One 10/100 Base-T RJ-45 port
Two USB and one type I/II PC Card
One programmable diagnostic LED and buzzer
Supports ADAM series for remote data acquisition and control
Supports Wireless LAN PCMCIA modules
Windows CE .NET ready solution

UNO-2053
GX1-300 Universal Network Controller with 2 x LAN, 2 x RS-232
On-board GX1-300 MHz, 64 MB RAM
Dual standard RS-232 and DB-15 VGA connector
Dual 10/100 Base-T RJ-45 Port
Two USB and one Type I/II PC cards
Windows CE .NET
Modbus/RTU and Modbus/TCP devices S/W drivers
ADAM I/O and Wireless LAN PCMCIA modules

UNO-2052: Coming Soon
GX1-300 UNO with 2 x CAN, LAN, USB, RS-232, 8 x DI/O, 2 x AI
Onboard GX1-300 MHz, 64MB/128MB RAM
Dual CANBus ports and one standard RS-232
One 10/100Base-T RJ-45 port and one USB port
4-ch isolated DI and 4-ch isolated DO
2-ch AI that supports T/C, V, mV, mA signal input
Supports one 2.5"HDD
Windows CE .NET ready solution

UNO-2050
GX1-300 UNO with 2 x LAN, 2 x RS-232, 2 x isolated RS-232/422/485,
16 x isolated DI/DO
Onboard GX1-300 MHz, 64MB/128MB RAM
Dual RS-232 and dual isolated RS-232/422/485 with auto flow control
Dual 10/100Base-T RJ-45 port
Isolated 8-ch DI and 8-ch DO with counter/timer
DB-15 VGA connactor, support one 2.5" HDD installation
Windows CE .NET ready solution

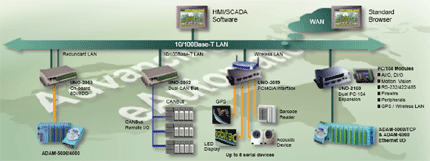

> Click on the below image for a larger view


Click here for more information on Advantech's Universal Network Controllers.
