Market: Power & Energy
Location: Switzerland
Technology Partner: Opit Solutions

Project Introduction:
Energy demands are increasing and the environment is under constant pressure; as we look for alternative energy sources, the implementation of energy saving strategies has become more important than ever. Almost 40% of total energy production is used for buildings; over one-third is consumed for space and water heating and the remainder is used for ventilation, air conditioning and artificial lighting.

A customer in Europe aiming to analyze and optimize their energy consumption and efficiency across several buildings wanted to build an energy management system that was capable of gathering energy data from different suppliers. With these targets in mind, they contacted OPIT Solutions to help them develop their system and provide them with the means to save energy.

System Requirements:
The brief was to create an active energy management system to monitor and improve power distribution management across a large number of buildings to guarantee efficient energy usage. The solution needed the ability to monitor power consumption and the behavior of the controlling devices at each building in real-time, adjust power consumption according to its needs, and improve its efficiency. In addition, the customer required a benchmark system to compare the specific energy consumption for similar buildings.

Hans Burkard from OPIT Solutions said, “Due to the variety of technologies in the building, we needed to collect data from different suppliers, therefore we chose an Advantech UNO-series hardware platform which offers a variety of interfaces like RS-232/485, USB and TCP/IP, to collect data to a central database.”

Project Implementation:

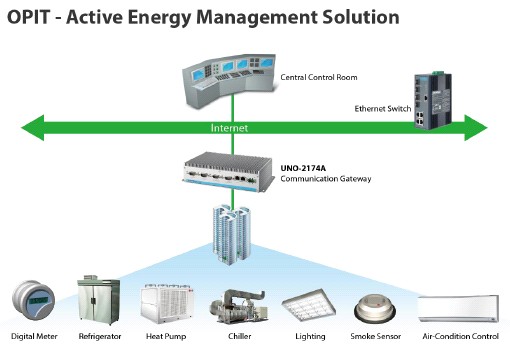

System Diagram:

System Description:
An UNO-2174A embedded automation computer from Advantech was chosen for its multiple communication ports and its fanless rugged low maintenance design with IP40 anti-dust ingress protection and wide operating temperature range.

The UNO-2174 also supports 1 x PC/104+ and 1 x PCI-104 plug in cards for further expansion. Hans further stated, “During the migration phase we had one or two issues to solve and it was good to know that there was always somebody on the other end of the phone with technical or sales knowledge. We considered several products during our evaluation phase, and our R&D department tested them all down to the board level. We saw the real quality behind Advantech products, and with this kind of support it was really a simple choice.”

Conclusion:
Reliability is always a priority with Advantech products, and our platform for this case is no exception. Regarding the UNO-2174A, its versatile expansion capabilities with high efficiency, stability and performance makes it an excellent choice for this case whilst satisfying the customer’s demands.
