Optimize
Your Site Operation with Advantech's Touch Panel Computers
 Advantech's
Touch Panel Computer (TPC) series is a thin compact system
that comes embedded with Intel StrongArm or Transmeta Crusoe
low power CPU engines. It's fanless, solid state disk storage
design brings HMI operation to a new level of usability. Compared
to traditional HMI terminals, users who choose Advantech's
TPC solutions enjoy better functionality and Ethernet connectivity.
Advantech's TPC series is specifically designed for industrial
specific applications for machinery, factory automation, transportation,
and outdoor information kiosks or terminals.
TPC Series Main Benefits
- Windows CE or Linux based operator interface platforms
- Multiple display sizes: 5.7", 6.4", 10",
12", and 15"
- Fanless and no spindle design for harsh environments
- Long-life touch screens
- Heat, dust, and water proof functionality
- Ultra slim and light
- Front panels meet NEMA4/IP65 standards
- High reliability
- Easy to maintain
- Built-in high speed Ethernet communications
- Supports thin client software options (Citrix ICA, Java
JVM, Microsoft RDP)
Touch Panel Computer with Thin Client Solution
Advantech also takes the lead to bring the Thin Client concept
into industrial utilization. The complimentary combination
of the TPC series with Thin Client software allows users to
configure distributed hardware from any safe central location.
With Advantech's TPC Thin Client solution, this perfect amalgamation
of hardware and software will benefit our clients from reduced
cost expenditure and enhanced efficiency from diverse, distributed
industrial applications.
Advantech's TPC Thin Client solution also benefits our customers
from a shared multi-user architecture, offering security for
critical data and easy field maintenance resulting in lower
total project costs. The TPC Thin Client series software supports
Citrix ICA, Java JVM and Microsoft RDP, which lets the system
integrator easily harmonize hardware with industrial applications
for various industrial applications.
Touch
Panel Computer Product Series
TPC-642
StrongARM Touch Panel Computer with 5.7" QVGA STN Display
TPC-650
Pentium MMX Touch Panel Computer with 6.4" VGA TFT/5.7"
QVGA STN Display
TPC-1240T
StrongARM Touch Panel Computer with 12.1" SVGA TFT Display
TPC-1260T
Transmeta Crusoe Touch Panel Computer with 12.1" TFT
Display
TPC-1560T
Transmeta Crusoe Touch Panel Computer with 15" TFT Display
Sample
Solutions
General

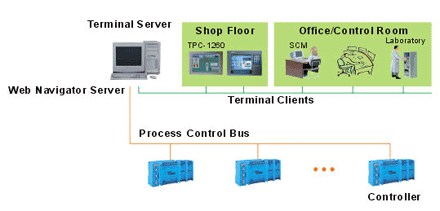

Thin Client Application
- Many different client devices to a master server

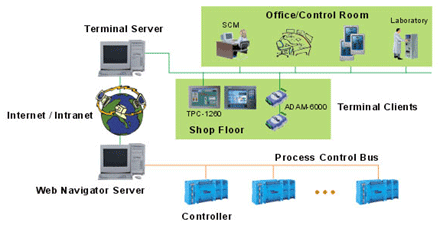

Factory wide Thin Client Application
- Many Touch Panel Computer Clients to a master server

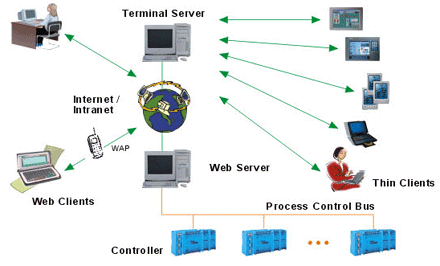

Mass Transit Thin Client Application
- Multiple users on Internet/Intranet to master server
