MIO-5290
• Intel® 3rd Generation Core™ i3 and i7 processors + Intel® QM77 PCH, DDR3/DDR3L
  SO-DIMM support up to 8 GB
• DirectX11, OpenGL3.1, OpenCL1.1, 3 independent display: VGA + LVDS + HDMI/DisplayPort
• Supports Intel AMT8.0 and TPM1.2
• MIOe can extend additional functions easily to approach vertical applications and keep domain knowhow.
• 2 Intel GbE support, HD Audio, Rich I/O interface with 2 USB 3.0, 4 USB 2.0, 2 COM, 2 SATAIII, SMBUS, 8-bit
  GPIO, Half-size Mini PCIe and Full-size Mini PCIe with mSATA support
• Supports Supports Advantech iManager iManager, SUSIAccess and Embedded Software APIs
• Match MIO-5290 with standard modules such as MIOe-210, MIOe-220 and MIOe-230 MIOe-230 to extend
   additional I/O functions.


         Product Description
    MIO-5290

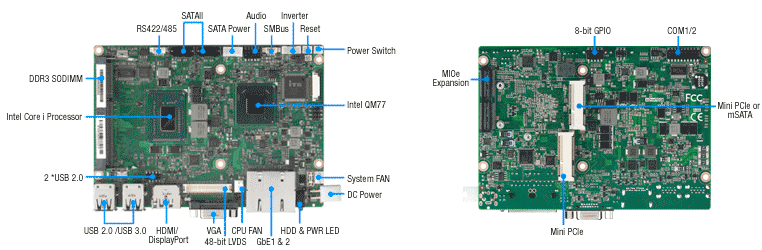

    The new MIO-5290 Single Board Computer is in a 3.5” MI/O Extension form factor, and based on Intel®
    3rd generation Core™ i3/i7 processors with QM77 chipset, supports either 1600MHz DDR3 or low power 1333MHz DDR3L, USB 3.0, SATA III (600 MB/s), AMT 8.0, and can drive three independent displays (two DisplayPorts combine with any other device). Thanks to MIO-5290’s high performance and a flexible multiple I/O interface (MIOe expansion slot) which can extend additional functions easily, MIO-5290 makes a perfect development platform for graphics intense applications.
         Product Applications
      MIO-5290 in Video Conference System
    Video conference system increases productivity and efficiency in today’s highly competitive market. One of Advantech’s customers in China who adopted MIO-5290 SBC required flexibility in I/O ports expansion, so that their video concerence system can catch up with their business expansion.


         Product Beneifts
    Superior Performance for Intelligent Systems
    • Adopts Intel 22 nm Core i3 & i7 dual core processors
    • Increases CPU performance by up to ~15% with lower or the same power consumption.
    • 30% 3D Gfx performance over SNB, faster media performance
    • DDR3 or DDR3L SODIMM Support, up to 8GB for speedier data transmission and exchange at lower power
    • USB 3.0 or SATAIII ports up to 6Gb/s available

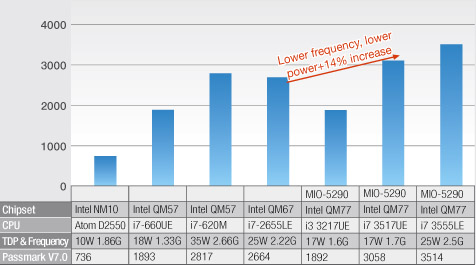

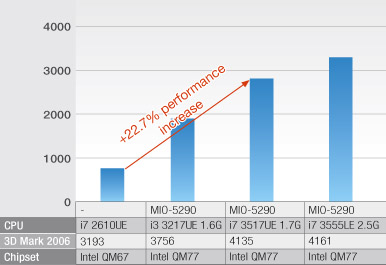

    MIO-5290 CPU Performance   MIO-5290 Graphic Performance


    Outstanding Integrated Graphics: DirectX 11 & Triple Display
    • Support 3 Independent Displays (VGA + 48-bit LVDS + HDMI or VGA + 48-bit LVDS + DisplayPort)
    • Support DX11, OpenGL *3.1, OpenCL* 1.1
    • JPEG/MJPEG H/W decode, MPEG2 encode
    • Up to a 50% 3D improvement and 1.8x increased HD to HD transcoding performance
    • HW accelerated Media Decode: AVC/H.264, VC-1, MPEG-2
    • HW accelerated Media Encode: AVC/H.264, MPEG2

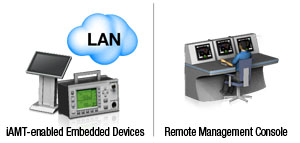

    Enhanced Security & Manageability from Intel AMT8.0
    • Remote diagnosis and repair
    • Software and hardware inventory capabilities for remote asset management
    • Hardware based security features including system defense filters and network isolation
    • Power state control
    Extensible multiple I/O for efficient development
    MIO-5290 provides additional interfaces from MIOe: DisplayPort, 4 PCIe x 1, USB 3.0 x 1, USB 2.0 x 1, LPC, SMBUS, Audio line out and Power.
    To maximize development efficiency, customers can choose to match MIO-5290 with standard modules such as MIOe-210, MIOe-220 and MIOe-230.
    MIOe Module+ MI/O SBC MIOe-210 +MIO-5290 MIOe-220 +MIO-5290 MIOe-230 +MIO-5290

    Extended Interfaces Multiple COM Ports (up to 1 RS232,
    5 RS232/422/485, 2 RS-422/485)    		 Triple Internet GbE LAN
    (up to 5 GbE LAN)    		 48-bit LVDS or DisplayPort & USB2.0
    (up to 2LVDS, 4USB)

    Manage Applications Efficiently with iManager & SUSIAccess
    MIO-5290 embeds iManager intelligent self-management cross platform firmware that monitors system status for problems and reacts to take action if something is abnormal. Additionally, SUSIAccess is a utility and API bundled with MIO-5290 to configure and monitor the system—and recover it if it fails. Both software tools help
    the system to be more reliable and smart.

         Specifications & Ordering Info

    Part Number MIO-5290L-U5A1E MIO-5290U-S6A1E MIO-5290U-S7A1E
    Processor CPU Intel Core i7-3555LE Intel Core i3-3217UE Intel Core i7-3517UE
    Processor
    System    		 Clock Speed 2.5 GHz 1.6 GHz 1.7 GHz
    Max TDP 25 W 17 W 17 W
    Chipset Intel QM77 Intel QM77 Intel QM77
    Memory (Max) 8GB, DDR3/DDR3L - 1333/1600 8GB, DDR3/DDR3L - 1333/1600 8GB, DDR3/DDR3L - 1333/1600
    Display Controller Intel® HD Graphics 4000 Intel® HD Graphics 4000 Intel® HD Graphics 4000
    Interface VGA, LVDS, DisplayPort/HDMI VGA, LVDS, DisplayPort/HDMI VGA, LVDS, DisplayPort/HDMI
    Ethernet Controller GbE1:Intel 82579LM, GbE2:Intel 82583V GbE1:Intel 82579LM, GbE2:Intel 82583V GbE1:Intel 82579LM, GbE2:Intel 82583V
    Audio Chipset Realtek ALC892 Realtek ALC892 Realtek ALC892
    SATA Channel 2 (600 MB/s) 2 (600 MB/s) 2 (600 MB/s)
    USB USB 3.0 2 from Rear I/O 2 from Rear I/O 2 from Rear I/O
    USB 2.0 2 from Rear
    2 from Internal    		 2 from Rear
    2 from Internal    		 2 from Rear
    2 from Internal
    Serial Ports 1 RS-232 from COM1
    1 RS-232/422/485 from COM2    		 1 RS-232 from COM1
    1 RS-232/422/485 from COM2    		 1 RS-232 from COM1
    1 RS-232/422/485 from COM2
    Expansion Mini-PCIe 1 Full-size (mSATA supports)
    1 Half-size    		 1 Full-size (mSATA supports)
    1 Half-size    		 1 Full-size (mSATA supports)
    1 Half-size
    Power Power Connector ATX 2x2P DC Jack DC Jack
    Environment Operating Temperature 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F)
    Physical Characteristics Dimensions (L x W) 146 x 102 mm (5.7" x 4") 146 x 102 mm (5.7" x 4") 146 x 102 mm (5.7" x 4")
         Placement
    • 146 mm (L)* 102 mm (W) * 583mm (H (MIO-5290L Height with thermal solution)
    • 146 mm (L)* 102 mm (W) * 476mm (H) (MIO-5290U Height with thermal solution)

    Rear I/O View
    MIO-5290U-S6A1E
    MIO-5290U-S7A1E    		 MIO-5290L-U5A1E
         Packing List & Optional Accessories
    Packing List
    Part No. Description Quantity
       MIO-5290 SBC 1
    2006529000  Startup Manual 1
    1700006291  M Cable SATA 7P/SATA 7P 30cm C=R 180/90 1
    1700018785  SATA 35cm power cable 1
    1700019435  COM RS-485 D-SUB 9P (M)/1*5P 1.25 25cm cable 1
    1701200220  COM RS-232 Cable 2*10P-2.0/D-SUB 9P (M)*2 22CM 1
    1700019584  Audio Cable 2*5P-2.0/JACK*3 20cm 1
    9689000002  mini Jumper pack 1
    1960057431N001  Cooler for MIO-5290L series only 1
    1960057432N001  Cooler for MIO-5290U series only 1
    Optional Accessories
    Part No. Description
    1960058000N001  Heat spreader for MIO-5290
    1700006291  SATA cable 7P/ 7P 30cm C=R 180/90
    1703100260  USB5/6 cable
    1757003934  Adaptor 100-240V 60W 12V 5A W/O PFC
    OS/API
    Embedded OS/API Part No. Description
    Windows Embedded Standard  2070011449  WES2009 MIO-5290 ENG
    Windows Embedded Standard 7  2070011453/  2070011452  WES7E 32/64bit MIO-5290
     ENG/GER/JPN/CH
    Linux    Ubuntu 12.04
    Software API    iManager 2.0
